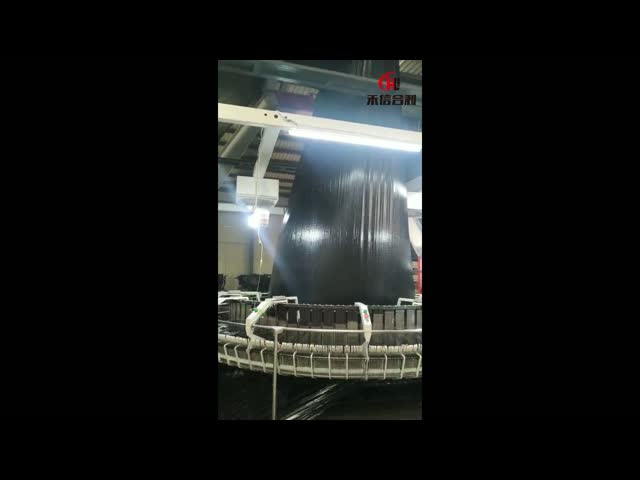

SBY-850X6s Six Shuttle Plastic Woven Bag Automatic Circular Loom Machine
Descripition:
UW series circular lloom, which adopts the SCM (Single Chip Microcomputer), carry out centralized control to the system; the parameter is set up and changed on HMI (Human Machine Interface). Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously. The function of accurate weft cloth compensate, can carrying on by weft density adjustment in time, improving fabric's quality and the qualification rate. Mechanical malfunction can be displayed in sub-area and recorded in detail. Users may conveniently process the production management and control the system in real time on the HMI.
Main technical Datas:
| ltem | SBY-850x6S |
| Number of shuttles(pcs) | 6 |
| Nolding width of cloth | 300~850mm |
| Number of warp | 720 |
| Weft densith | 20-75picks/100mm |
| Running speed of main motor | 135-150r/min |
| Power of main motor | 3kw |
| Specification of bobbin(ID×L) | 28-38x230mm |
| Max. weft bobbin diameter | 1155mm |
| Overall dimension(L×W×H) | 10500x2800x2920mm |
| Weight of machine(about) | 2000kg |
Machine details:
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.
5.How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
6. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
